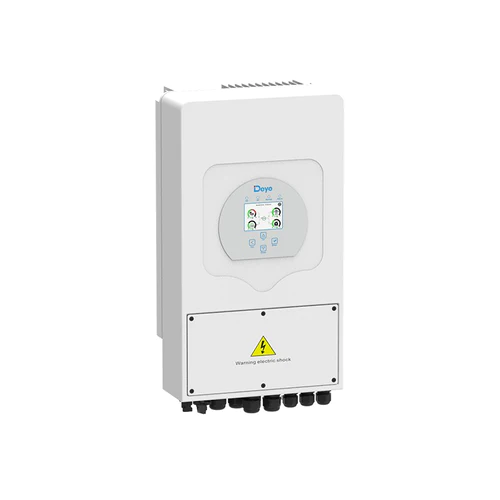

DEYE 5kw Bi- Directional Single Phase Hybrid Inverter

Battery Input Data

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 120A
Max. Discharging Current (A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data

Max. DC Input Power (W): 6500W.
PV input Voltage (V): 370V (100V-500V).
MPPT Range (V): 125-425V.
Start-up Voltage (V): 150V.
PV Input Current (A): 11A + 11A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 1+1.
AC Output Data

Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 21.7.4A
Max.AC Current(A): 25A
Max Continuous AC Pass-through(A): 35A.
Output Frequency and Voltage: 50Hz; 240Vac,
Grid Type: THD<3%(Linear load<1.5%).
Current Harmonic Distortion: THD<3% (Linear load<1.5%).
Efficiency

Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
Protection

PV Arc Fault Detection: Integrated (Except European Type)
PV Input Lightning Protection: Integrated
Anti -islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output over Current Protection: Integrated
Output Shorted Protection: Integrated
Output over Voltage Protection: Integrated
